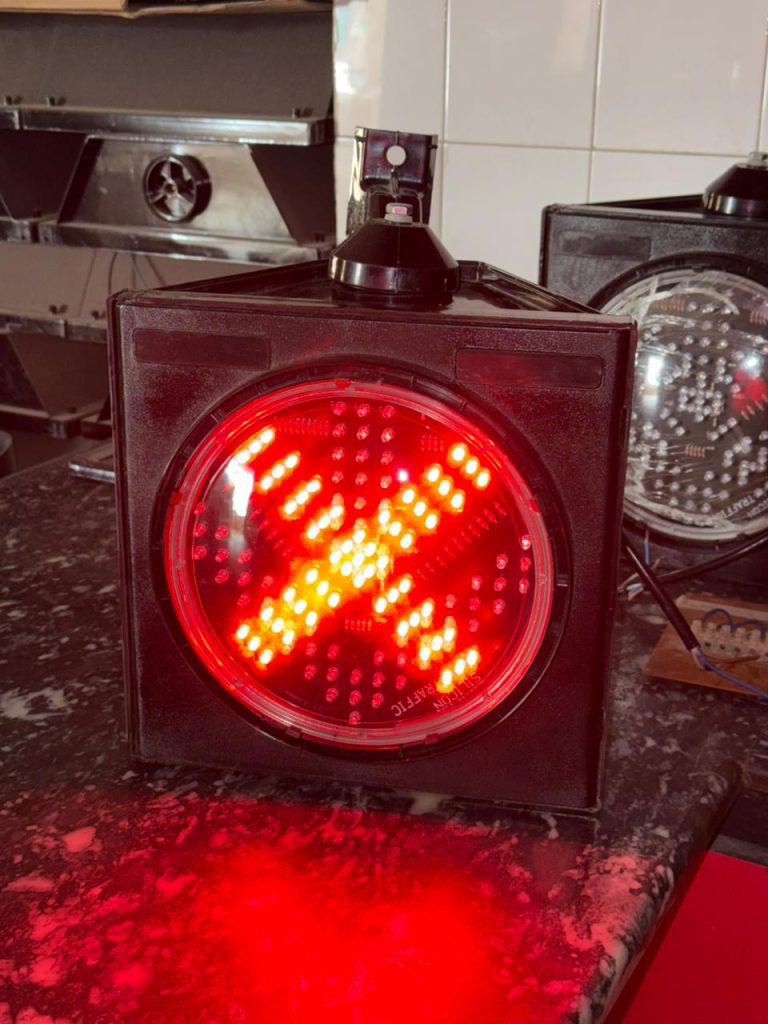

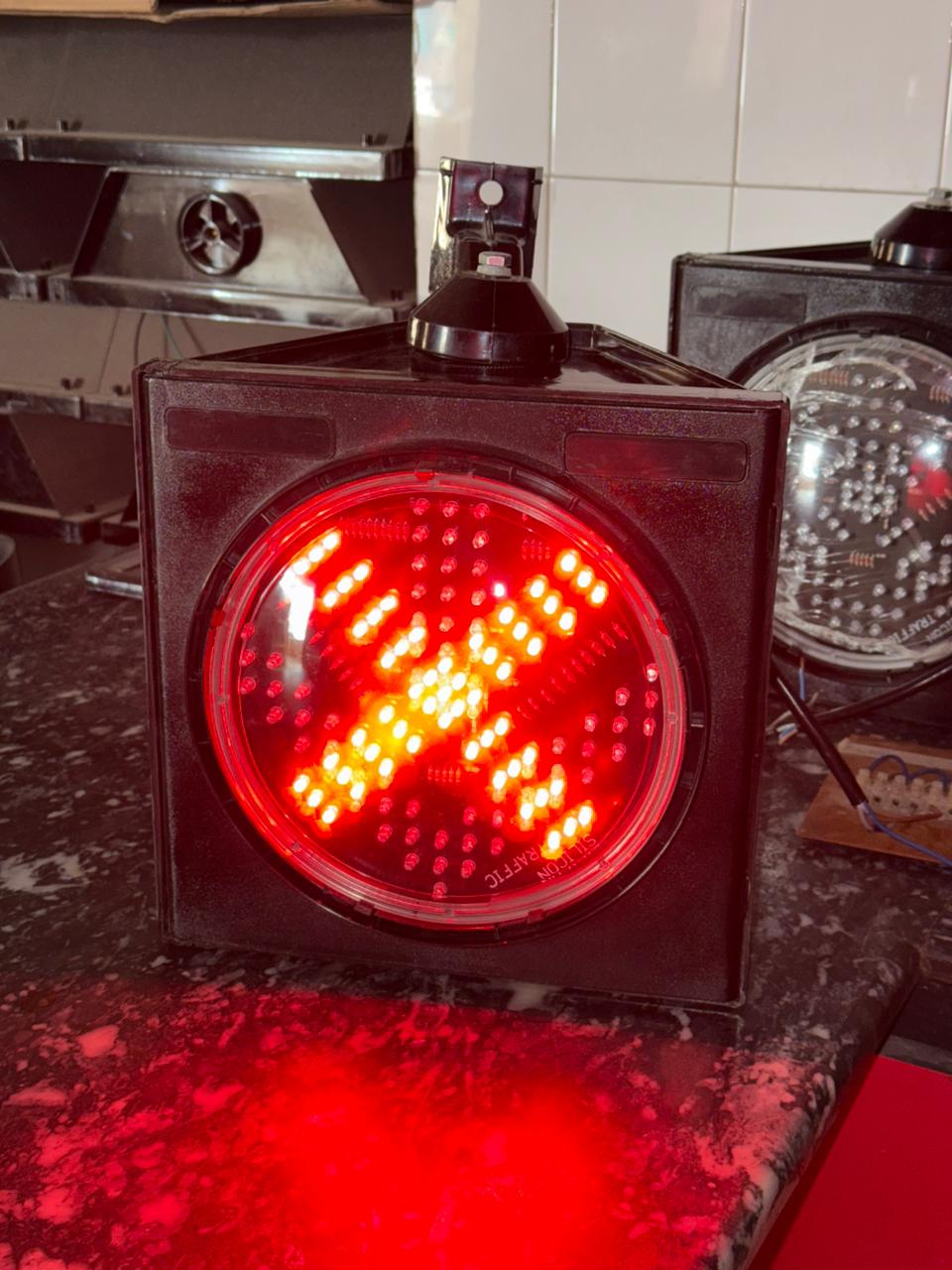

arrow cross light

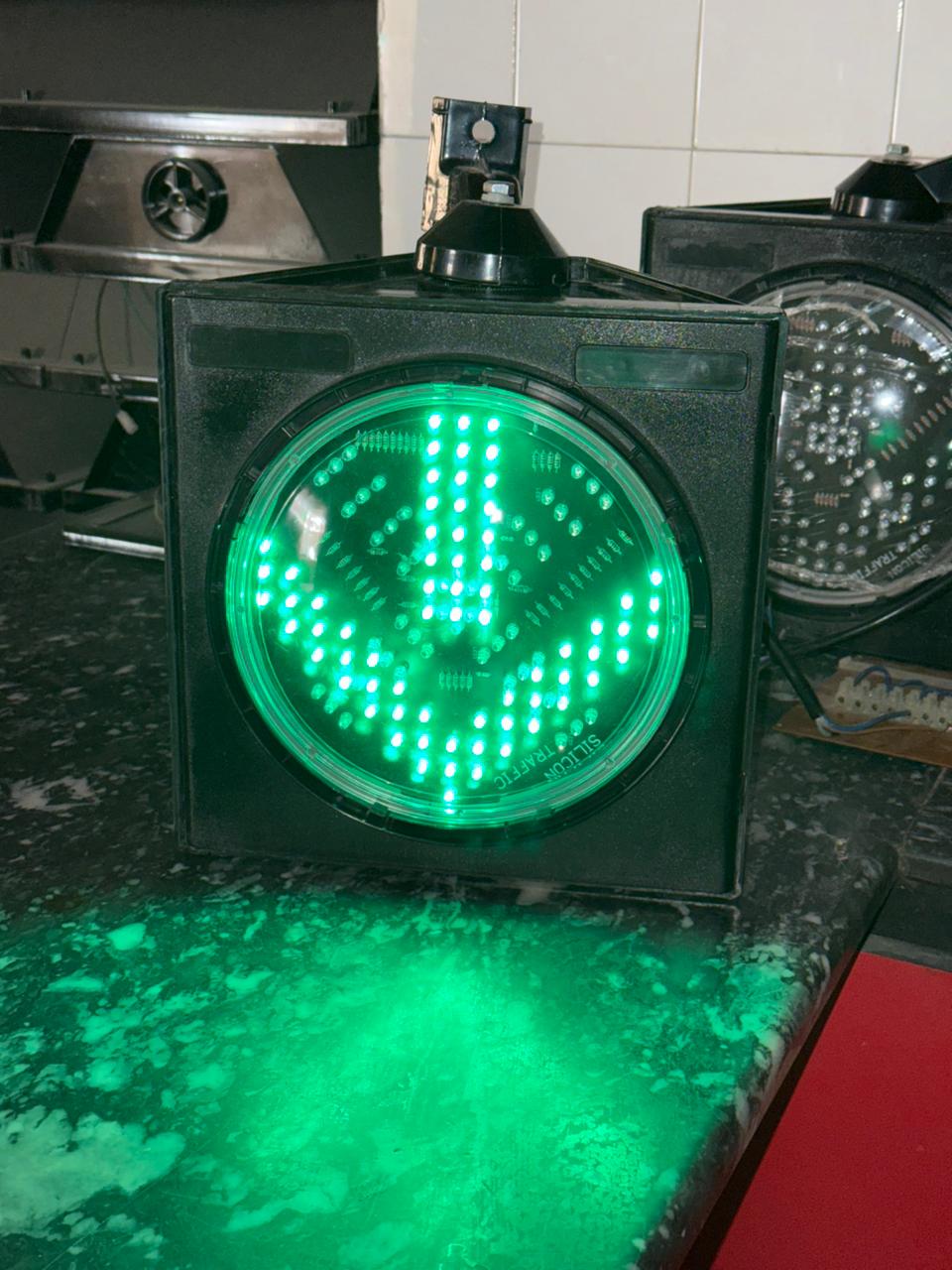

The arrow cross light is also used to indicate a “permissive” turn, meaning that vehicles are permitted to turn in a specific direction but must yield to other traffic or pedestrians. For example, an arrow pointing to the right would indicate that vehicles in the right lane are permitted to turn right after yielding to pedestrians and other traffic.
KEY FEATURES
- No LED dots visible, very uniform signal glow – central light source
- High anti-phantom performance
- Lowest power consumption and brilliant light output
- Custom-made masks allow any symbol display
- 5 .Life cycle > 5 years
- Optimum heat balance reduces degradation to a minimum
- 7 Automatic light compensation in case of diode failure
- 8 Proven technology
- 9 Also available with clear lens
- 10 Compatible with standard-conforming signal head housings
Technical details
- 12V DC
- 220VAC 50Hz
- Diameter 210 mm Ø 300 mm Ø 210 mm Ø 300 mm
- Luminous intensity acc. to EN12368 red > 200 cd amber > 200 cd green > 200 cd
- ptical performance acc. to EN12368 A2/1, W A2/1, N A2/1, W A3/1, N
- Colour acc. to EN12368 red 613.5 – 631 nm amber 585 – 597 nm green 498.5-508 nm (white 5000 – 7000 K)
- Uniformity of Luminance acc. to EN12368 better than 1 : 2.5
- LED type High Flux
- Phantom light class Class 5 Class 5
- Power Factor > 0,9
- Operating Voltage 12V DC
- bright mode/dimmed mode (+10%; – 15%)
- Frequency 24V AC: 50 Hz (+/- 5%)
- Power consumption: typically bright mode / dimmed red 4 W amber 4 W green 4 W white 4 W
- EMC acc. EN 50293
- Cable 2 x 0.75 mm²; 1 m
- Ambient temperature range acc. to EN1236 Class A, B, C (-40°C to +60°C)
- Protection Class Safety Class II acc. to EN 61140
- Tightness IP 65 acc. to EN 60529
- Impact resistance Class IR3; acc. to EN 60598-1
